Last Updated: 19 January 2026
In the permanent monitoring of deep wells and high-temperature oil and gas reservoirs, the threat to optical fibers comes not only from extreme pressure but also from an invisible "killer"—hydrogen. Under high-temperature and high-pressure conditions, hydrogen molecules easily permeate the interior of fiber optic cables. Once inside, they react chemically with the silica (SiO2), causing severe absorption loss. This phenomenon is known in the industry as "Hydrogen Darkening" or "Hydrogen-Induced Attenuation," which can effectively "blind" the sensing system.
This is a companion discussion topic for the original entry at https://www.ofscn.org/encyclopedia/519-sst-cables-three-layer-02.html
Hydrogen darkening is indeed a critical challenge for long-term reliability in downhole environments. As hydrogen molecules penetrate the fiber and react with the silica core, the resulting attenuation can render sensing data unusable, especially in high-temperature oil and gas reservoirs.
To address this, the OFSCN® Triple-Layer Downhole High-Temperature Fiber Optic Cable is engineered with multiple physical barriers to block hydrogen permeation and provide superior mechanical protection.
Technical Advantages of the Triple-Layer Design:
- Multiple Physical Barriers: The structure typically consists of three nested layers of seamless metal tubes (commonly 316L Stainless Steel or 825 Alloy). This “tube-in-tube” configuration significantly increases the diffusion path for hydrogen, effectively isolating the optical fibers from the external harsh environment.
- High-Temperature Material Matching: For temperatures up to 200°C or 300°C, these cables are equipped with OFSCN® Polyimide Coated Optical Fibers, which maintain structural integrity where traditional acrylate coatings would decompose.
- Pressure and Chemical Resistance: The outer layer (typically 6.35mm/quarter-inch diameter) provides the necessary crush resistance for deep-well deployment, while the inner layers protect the fibers from corrosive fluids.

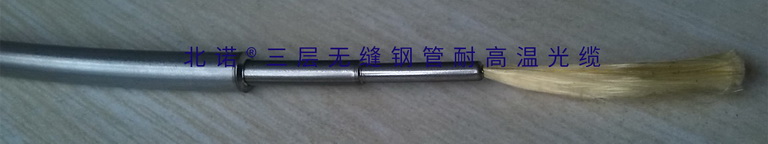

Standard Product Visuals:
Key Specifications:
- Outer Diameter: Standard 6.35mm (0.25 inch), customizable to 4.8mm or other sizes.
- Materials: 316L Stainless Steel for standard corrosive environments; 825 Alloy for high-H2S/CO2 environments.
- Fiber Options: Can be configured with single-mode (G.652D/G.657) or multi-mode fibers, including OFSCN® Gold-coated Optical Fiber for even higher temperature limits (up to 700°C) and ultimate hydrogen resistance.
For more technical details on the layered dimensions and alloy selection for specific well depths, you can view the full documentation here:
OFSCN® Triple-Layer Downhole High-Temperature Fiber Optic Cable Product Page
