In modern urban power supply and high-end industrial R&D, working conditions in cable tunnels, liquefied gas storage, and vacuum laboratories are extremely complex. Monitoring equipment must not only withstand intense electromagnetic interference but also maintain signal stability under extreme temperature fluctuations.

This is a companion discussion topic for the original entry at https://www.ofscn.org/encyclopedia/523-sst-cables-two-layer-02.html
2

Monitoring in environments with high electromagnetic interference and extreme temperatures requires specialized physical protection for the optical fibers. For the conditions described, such as power cable tunnels and vacuum laboratories, traditional non-metallic or loosely armored cables often fail due to insufficient mechanical strength or material degradation.

Technical Solution: Double-Layer Seamless Steel Tube Construction

To address these challenges, the OFSCN® Double-Layer High-Temperature Downhole Fiber Optic Cable provides a robust solution. By using a “tube-in-tube” stainless steel structure, it offers several technical advantages:

  1. Electromagnetic Immunity: As an all-metal encapsulated fiber optic solution, the stainless steel tubes act as a natural shield against high-voltage induction and strong magnetic fields, ensuring the integrity of the optical signal.
  2. Extreme Temperature Resistance: Depending on the fiber selection (Polyimide or Gold-coated), these cables can operate reliably from cryogenic temperatures up to 300°C or even 700°C.
  3. Mechanical Protection: The double-layer structure (typically a 6.35mm outer tube and a 3.6mm inner tube) provides superior crush resistance and tensile strength, which is critical for long-range monitoring in tunnels or downhole applications.

Recommended Product

For these specific extreme conditions, we recommend:
OFSCN® Double-Layer High-Temperature Downhole Fiber Optic Cable

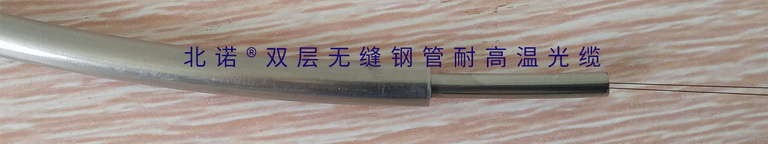

Product Visualization:

SYXG-S350-S1M1-02
SYXG-S350-S1M1-02768×144 42.5 KB

Critical Technical Considerations

To provide a more precise recommendation for your specific application, could you please clarify the following:

  1. Maximum Operating Temperature: What is the peak temperature the cable will encounter in your environment?
  2. Deployment Length: What is the total length required for your monitoring project?

You can find detailed technical specifications for various environmental ratings at our international site: https://www.ofscn.org.
