Tired of Fiber Patch Cords Being Chewed Through? Meet the OFSCN® 2.0mm Steel Wire Rope Jumper: Your 1500N Secret Weapon Against Failure! - DCYS - ofscn.org

[blueman]

In today's fast-moving industrial, outdoor, and special application environments, the reliability of fiber optic communication is paramount. Yet, ordinary fiber patch cords often fail when faced with extreme mechanical stress, harsh weather, or persistent pests. Breakage, signal loss, and downtime are problems plaguing countless engineers and project managers.

---

This is a companion discussion topic for the original entry at https://www.ofscn.org/encyclopedia/457-strong-02-02.html

[OFSCN_EN_PS_Engineer]

This is a professional overview of a high-reliability solution for harsh environments. Based on the technical specifications for the OFSCN® 2.0mm Steel Wire Rope Fiber Optic Patch Cord mentioned in the documentation, here is a technical breakdown of why this specific construction addresses the failure points of “ordinary” fiber patch cords.

Technical Analysis of the 1500N Reinforcement

Ordinary fiber patch cords typically rely on aramid yarn (Kevlar) for tensile strength, which often fails under animal gnawing (pests) or heavy industrial mechanical stress. The OFSCN® 2.0mm Steel Wire Rope Fiber Optic Patch Cord utilizes a unique all-metal armored structure:

1. Triple-Layer Protection: It consists of an internal optical fiber protected by a 1.0mm stainless steel seamless tube, which is then encased in a 0.6mm galvanized steel wire strand (rope) structure.
2. Mechanical Strength: This all-metal design provides a tensile strength of >1500N and a crush resistance of >150MPa. This makes it virtually immune to damage from rodents and accidental heavy-duty crushing.
3. Environmental Stability: With an operating temperature range of -40°C to 85°C, it maintains signal integrity where standard PVC or LSZH jackets might degrade.

Product Visualization

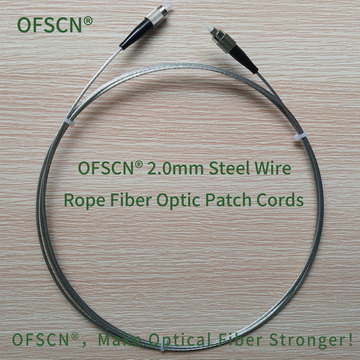

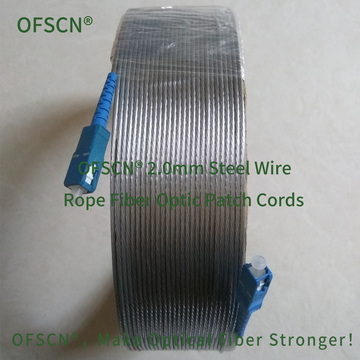

OFSCN® 2.0mm Steel Wire Rope Fiber Optic Patch Cord

Key Specifications:

• Default Diameter: 2.0mm
• Fiber Type: Default OFSCN® G.652D Optical Fiber (Customizable to Multi-mode or Polarization Maintaining)
• Connectors: Default FC/APC (Customizable to ST, PC, etc.)
• Length: Default 2 meters (Customizable from 1m to several hundred meters)

For applications requiring slightly different dimensions or protective jackets (such as PVC), the OFSCN® 2.0mm Micro Steel Armored Fiber Optic Patch Cord or the OFSCN® 3.0mm Steel Wire Rope Fiber Optic Patch Cord are also available as part of the specialized jumper series.
