Why is apodization necessary? How does it eliminate side lobes in the reflection spectrum?
Apodization is necessary in FBG fabrication to suppress or eliminate the side lobes in the reflection spectrum.
Reason for Necessity:
When a Fiber Bragg Grating (FBG) has a uniform refractive index modulation along its length, the reflection spectrum exhibits distinct side lobes in addition to the main Bragg peak. These side lobes are caused by the sharp, abrupt changes in the refractive index at the beginning and end of the grating. In practical applications, these side lobes can be problematic as they:
- Reduce signal-to-noise ratio: Side lobes can interfere with measurements, especially when trying to detect small changes in the main Bragg wavelength.
- Limit multiplexing capabilities: In a system with multiple FBGs, the side lobes from one FBG can overlap with the main reflection peak of another, leading to cross-talk and inaccurate readings.
- Increase ambiguity: It can be difficult to distinguish the true Bragg peak from strong side lobes, leading to misinterpretation of sensor data.
How it Eliminates Side Lobes:
Apodization involves gradually varying the refractive index modulation strength along the length of the FBG, rather than having a uniform modulation. This gradual tapering of the grating strength at its edges effectively reduces the abrupt changes in the refractive index. Mathematically, this is analogous to applying a window function to the grating profile.
The smooth transition created by apodization leads to:
- Reduced Fourier Transform artifacts: The sharp edges of a uniform grating act like a rectangular window in the spatial domain, which corresponds to a sinc function in the spectral domain, thus producing side lobes. Apodization smooths these edges, which in turn smooths the Fourier Transform, suppressing the oscillations that cause side lobes.
- Energy redistribution: By gradually reducing the grating strength at the ends, the reflected light is more concentrated within the main Bragg peak, and less energy is distributed into the side lobes.
Common apodization profiles include Gaussian, raised cosine, and tanh functions, each offering different levels of side lobe suppression and main peak characteristics.

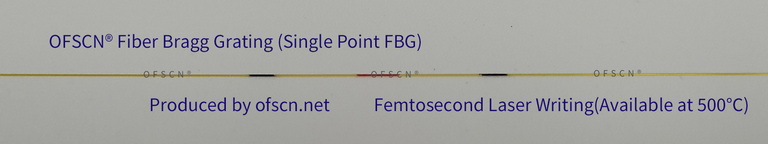

OFSCN offers various types of bare Fiber Bragg Gratings, including OFSCN® Polyacrylate Fiber Bragg Gratings / Fiber Bragg Grating Strings (bare), OFSCN® Standard Femtosecond Fiber Bragg Gratings / Fiber Bragg Grating Strings (Bare), and OFSCN® High-Strength Fiber Bragg Gratings / Fiber Bragg Grating Strings (Bare), which can be designed with apodization to meet specific spectral performance requirements.
