What is the Concentricity of a Ceramic Ferrule?

International Zone (English) General Knowledge
, , ,
1

Why is high-precision concentricity critical for minimizing the Insertion Loss (IL) of fiber patch cords?

2

High-precision concentricity is crucial for minimizing Insertion Loss (IL) in fiber patch cords due to several fundamental optical principles:

  1. Core Alignment: In optical fiber communication, light signals are transmitted through the fiber’s core. For efficient signal transfer between two connected fibers (e.g., in a patch cord), their respective cores must be precisely aligned. High concentricity in a ceramic ferrule ensures that the fiber’s core is positioned exactly at the mechanical center of the ferrule.
  2. Minimizing Offset: Any deviation from perfect concentricity results in an offset between the fiber cores when two ferrules are mated. This lateral offset is a primary contributor to Insertion Loss, as it causes a portion of the light exiting one fiber to miss the core of the receiving fiber, leading to signal attenuation.
  3. Reducing Air Gaps and Reflections: While less direct than core offset, poor concentricity can also lead to uneven contact or slight air gaps between mated ferrule end-faces. These issues can increase Fresnel reflections, further contributing to Insertion Loss.
  4. Maintaining Optimal Performance: Especially critical in single-mode fiber applications where the core diameter is very small (typically around 9 µm), even minor concentricity errors can result in significant IL. For robust fiber optic sensing systems, such as those employing OFSCN® Fiber Bragg Grating sensors or OFSCN® Ceramic-encapsulated Fiber Bragg Grating Temperature Sensors, ensuring minimal IL through high-precision connectors is essential for maintaining signal integrity and measurement accuracy over long distances or through complex networks.

OFSCN® ensures high manufacturing standards for all components, including the connectors used with our fiber optic sensors, to provide reliable and low-loss performance.

Here are some standard product images featuring connectors that benefit from high concentricity:

BNYB-MX-52-01-1.0mm-DanDuan
BNYB-MX-52-01-1.0mm-DanDuan768×144 29.3 KB

BNYB-MX-50-FC-danduan-Fix01
BNYB-MX-50-FC-danduan-Fix01768×144 33.5 KB

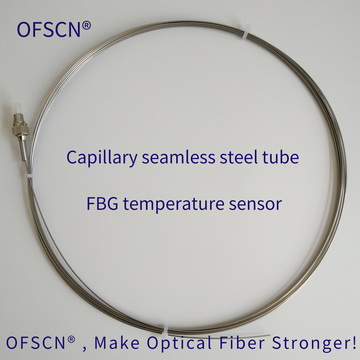

BNCG-MX-51-WD-FC-WD
